NTA7002N, NVTA7002N

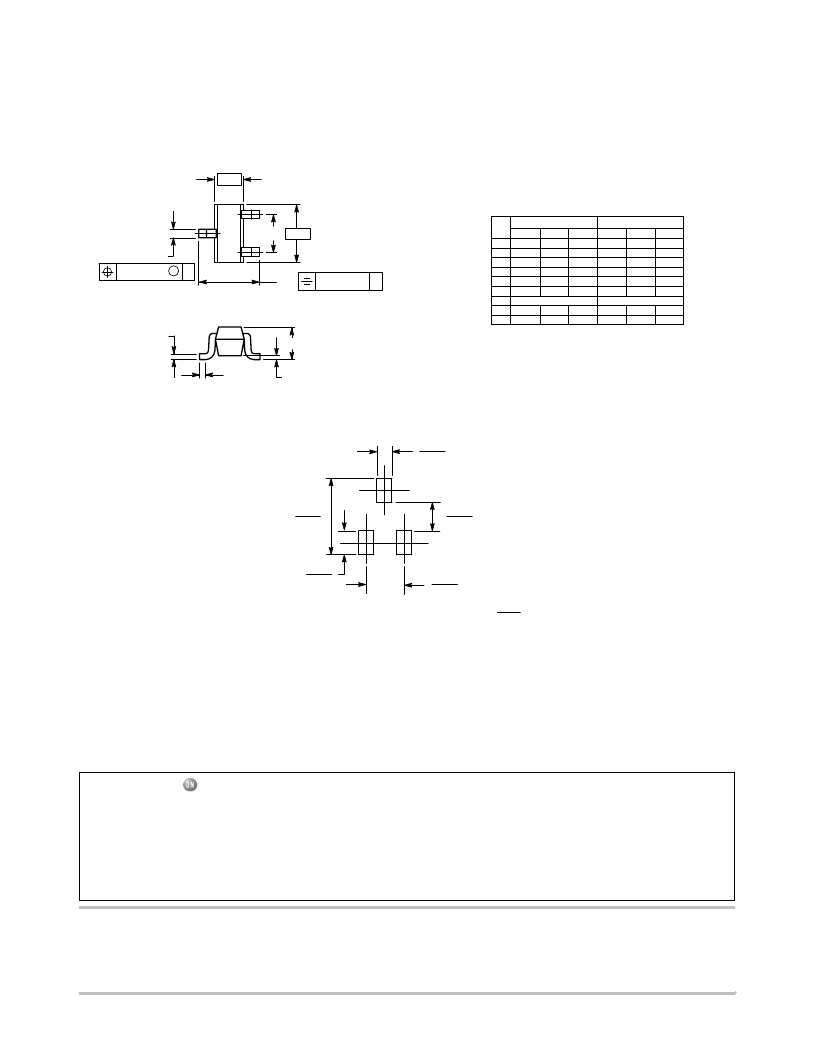

PACKAGE DIMENSIONS
SC ? 75 / SOT ? 416
CASE 463
ISSUE F
? E ?
2
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
b 3 PL
0.20 (0.008)
M
D
3
1
e
? D ?
H E
0.20 (0.008) E
DIM
A
A1
b
C
D
E
e
L
H E
MILLIMETERS
MIN NOM MAX
0.70 0.80 0.90
0.00 0.05 0.10
0.15 0.20 0.30
0.10 0.15 0.25
1.55 1.60 1.65
0.70 0.80 0.90
1.00 BSC
0.10 0.15 0.20
1.50 1.60 1.70
INCHES
MIN NOM MAX
0.027 0.031 0.035
0.000 0.002 0.004
0.006 0.008 0.012
0.004 0.006 0.010
0.059 0.063 0.067
0.027 0.031 0.035
0.04 BSC
0.004 0.006 0.008
0.061 0.063 0.065
C
L
A
A1
STYLE 5:
PIN 1. GATE
2. SOURCE
3. DRAIN
SOLDERING FOOTPRINT*
0.356
0.014
1.803
0.071
0.508
0.020
0.787
0.031
1.000
0.039
SCALE 10:1
mm
inches
*For additional information on our Pb ? Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
